PNEUMATIC TOOL

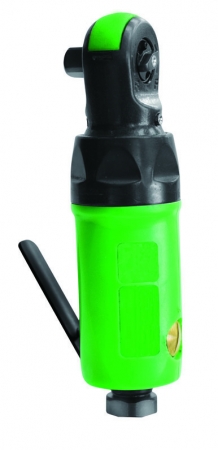

1/4” SQ. DR. SUPER DUTY MINI AIR RATCHET WRENCH
Description:
- Delivers 200 rpm free speed with 20 ft-lb (27 Nm) max torque
- Mini size - only 0.50 kg and 135 mm in length
- Head-sealed and full caged design prolongs tool service life
- Compact and lightweight
- Designed for long working duration and limited space applications.
Specifications
| SQUARE DRIVER(inch) |
1/4" |
| FREE SPEED (rpm) |
200 |
| AX TORQUE @ 5 SEC. |
27 Nm/ 20 ft-lb |
| OVERALL LENGTH(inch) |
5.3 inch/ 135mm |
| AIR INLET (inch) |
1/4 |
| AIR HOSE I.D (inch) |
3/8 |
| AVERAGE AIR CONSUMPTION |
3.7 cfm/ 103 L/min |
| NET WEIGHT |
1.1 lb/ 0.5 kg |
